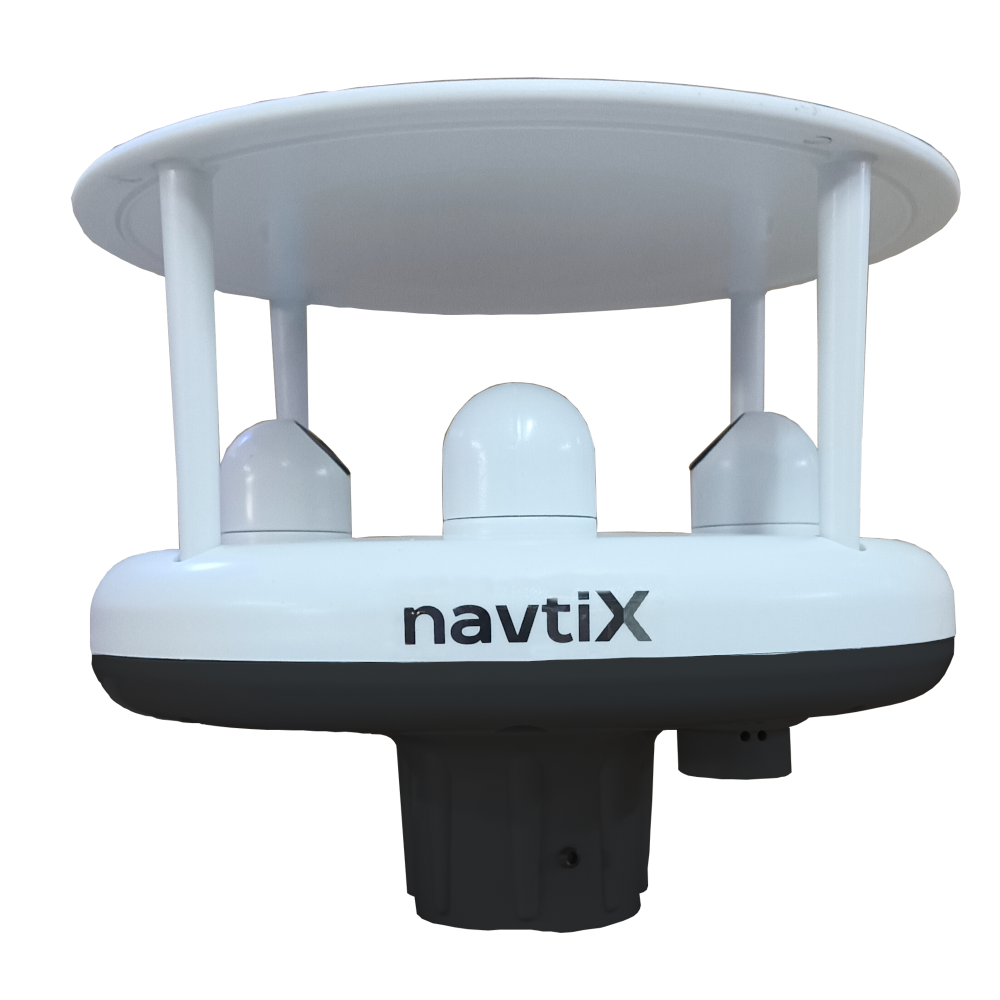

Ultrasonic Weather Station Sensor

Model: KWS-10

Part Number:

navtiX KWS-10 is an accurate and reliable ultrasonic weather measurement sensor to measures wind speed and direction, humidlty, temperature and pressure. Low maintence with no moving parts, does not need constant maintenance and does not require calibration.

Navigational Data of the KWS-10 such as temperature, wind speed and direction, etc, can be showed on the navtiX MFDs & Chartplotters when connecting.

Support Modbus protocol for industry use and MDA sentence-Meteorological Composite (Obsolete)

Main Features:

  • Recording and Playback of air temperature and air pressure data

  • Displays the history of air temperature and air pressure in order to predictthe weather change

  • Display wind information (True and Relative)

  • Able to connect heading and Lon/Lat Input

  • Alarms when change in Wind, Temperature and Air pressure is violated (depending on user settings)

  • Display Tidal data and Celestial

  • Hermetically sealed and IPX6 waterproof design

Specifications

  • Wind speed range: 0~40m/s
  • Wind speed precision: ±2% (at 12m/s)
  • Wind speed resolution: 0.01 m/s
  • Wind direction range:  0~359.9°
  • Wind direction resolution: 0.1°
  • Temperature measurement range: -20°C~+75°C
  • Temperature measurement accuracy: ±0.5°C (at 12m/s)
  • Temperature resolution: 0.1°C
  • Humidity measurement range: 10%~99.9%
  • Humidity measurement accuracy: ±2%RH (25°C)
  • Humidity resolution: 0.1%RH
  • Barometric measurement range: 30000~ 110000 Pa
  • Communication interface: RS232, RS485
  • Baud rate: 4800, 9600(default), 19200, 38400
  • Data format: NMEA0183(default), Modbus
  • Operating temperature: -30°C~ +80°C
  • Storage temperature: 20°C~ +75°C
  • Relative humidity: <5%~100%
  • Waterproof:  IP65
  • Electromagnetic compatibility:  IEC60945

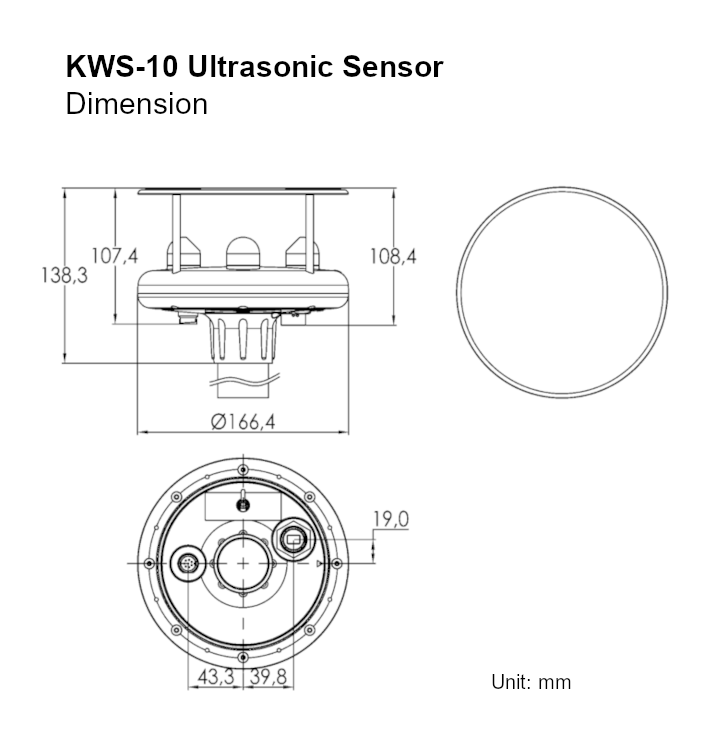

  • Physical dimensions:  165mm(L) x 165mm(W) x 140mm(H)
  • Power supply:  10.5-40.5VDC

In the Box

  • KWS-10 Ultrasonic Weather Station Sensor
  • 15m cable
  • Quick mount pole
  • M6 U style screw bolt x 2
  • Dog tooth mount x 2
  • M6 butterfly screws x 4
  • Hex key screw driver x 1
  • Installation manual

KWS-10 Ultrasonic Weather Station Sensor Installation Manual Download
