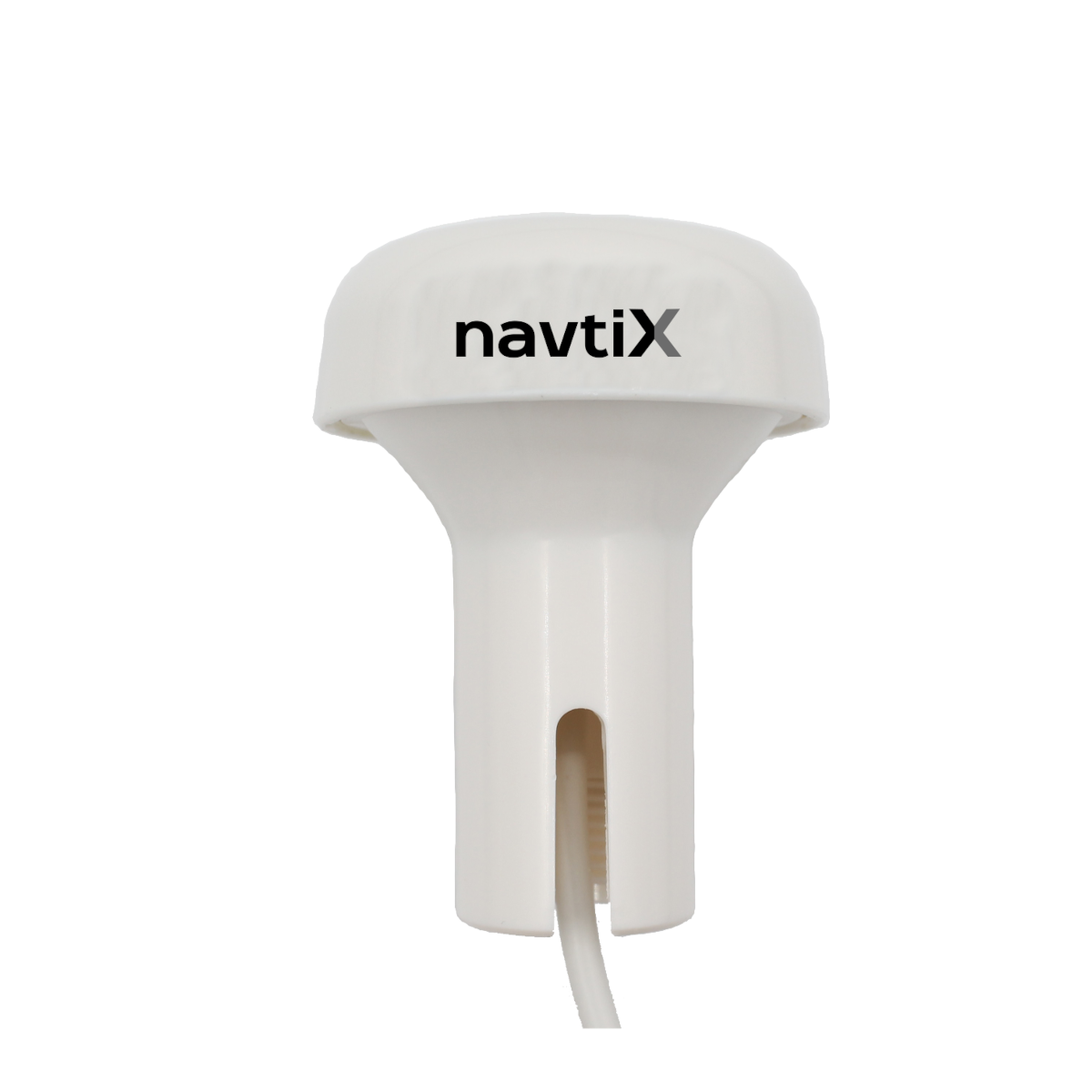

GPS/Beidou GNSS Antenna

Model: KGP-10

Part Number:

navtiX’s KGP-10 GPS antenna provides the greater accuracy and performance for industry-leading positioning, easily connects to navtiX’s standalone marine radar, AIS, chartplotter & multi-function displays.

Main Features:

  • Advanced 1Hz performance provides highly accurate and instant position updating
  • Provides precise location accuracy to within 3 metre
  • Immediate satellite signal fixing with the 50 channel receiver
  • Ideal for flush-mounting or pole mounting to 1”-14 threaded pipe
  • Hermetically sealed and IPX6 waterproof design

Specifications

GNSS Receiver:
  • Enclosure:  High compact, corrosion-proof PC
    (polycarbonate) resin
  • Construction:  Hermetically sealed, fully
    waterproof
  • Dimensions: 81.7 mm(D) X 91 mm(H)
  • Weight:  439.5g (w/o cable & connector)
  • RF Cable: 10m RG-59
  • Connector:  BNC connector supplied as
    standard
  • Antenna center frequency: 1575.42 MHz ± 1.023 MHz
  • Satellite channels: 50
  • Positioning accuracy: 2.5m (95%) without S/A
  • Update rate: 1Hz
  • Absolute Strengthening at Zenith: +5 dB
  • Power Boost:  27 dB
  • Noise figure: 2.0 max
  • Axial ratio: 3 dB max
  • SWR: 2.0
  • Output impedance: 50 Ohm
  • Supply voltage: 3.3~5.0VDC
  • Operating Temperature:  -40°C ~ +85°C
  • Storage Temperature:  -40°C ~ +90°C
  • Relative Humidity:  95% non-condensing
  • Waterproof:  IPX7

In the Box

  • KGP-10 GPS/Beidou GNSS Antenna with 10m cable
  • Pole mount
  • Flat base x 1
  • Long screws  (TA5-20) x 4
  • Short screws  (ST4-6) x 2
  • Screw buckles x 2
  • Wire thread buckle x 1
  • Sealing plug x 1
  • Installation manual

KGP-10 GNSS Antenna Installation Manual Download
