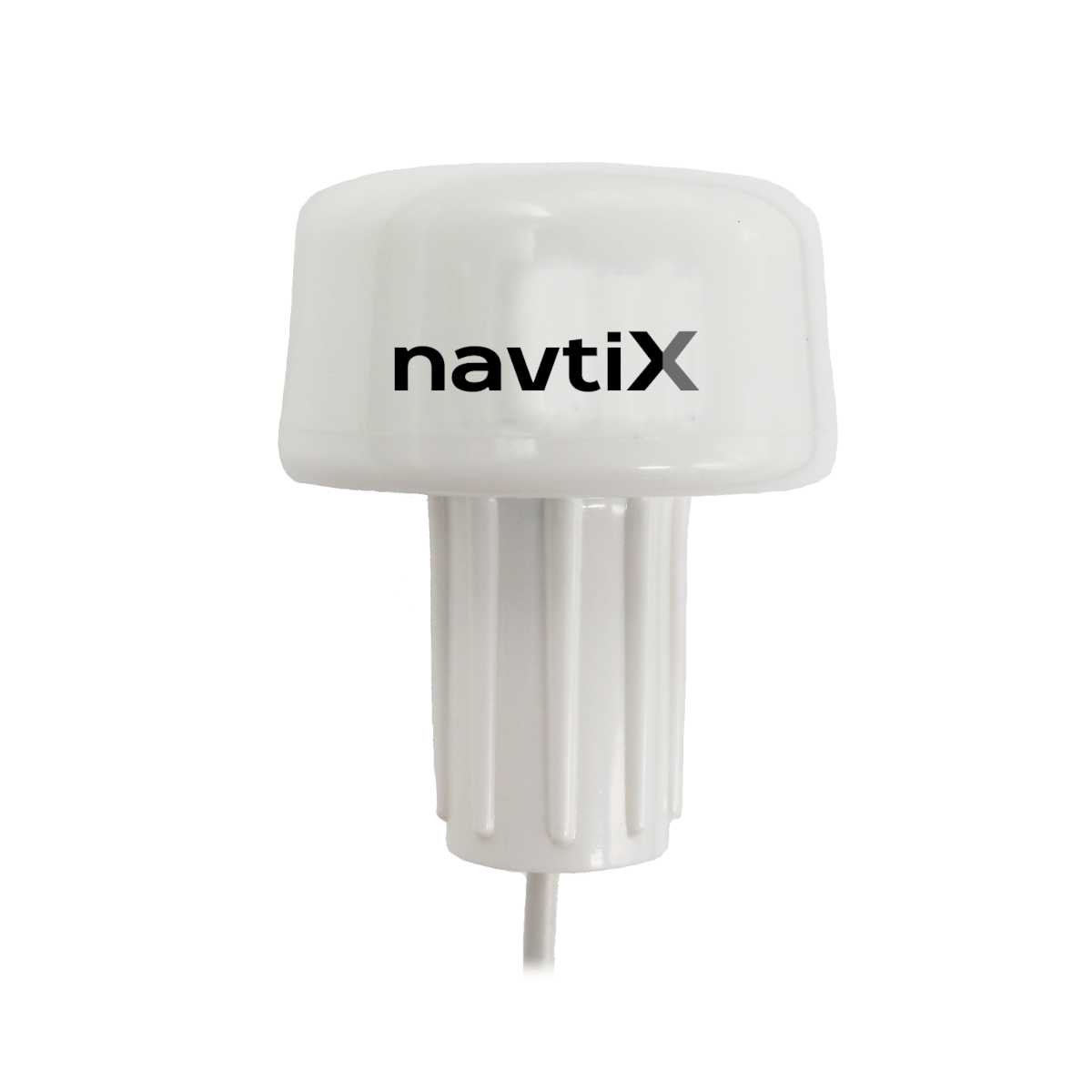

GPS/Beidou Electronic Compass Heading Sensor

Model: KHS-10

Part Number:

navtiX’s KHS-10 GPS/Beidou electronic compass heading sensor built-in 9-axis AHRS gyro provides the greater accuracy and performance for industry-leading positioning & heading, easily connects to navtiX’s standalone marine radar, AIS, chartplotter & multi-function displays. 9-Axis(Features a GPS/Glonass receiver coupled with a 9-axis AHRS unit providing 3D orientation by integrating gyroscopes and data fusing with accelerometers and magnetometers)

Main Features:

  • Advanced 1Hz performance provides highly accurate and instant position updating
  • Provides precise location accuracy to within 3 metre and heading accuracy within 3 degrees
  • Immediate satellite signal with the 50 channel receiver
  • Ideal for flush-mounting or pole mounting to 1”-14 threaded pipe
  • Hermetically sealed and IPX6 waterproof design

Specifications

  • Enclosure:  High compact, corrosion-proof PC
    (polycarbonate) resin
  • Construction:  Hermetically sealed, fully
    waterproof

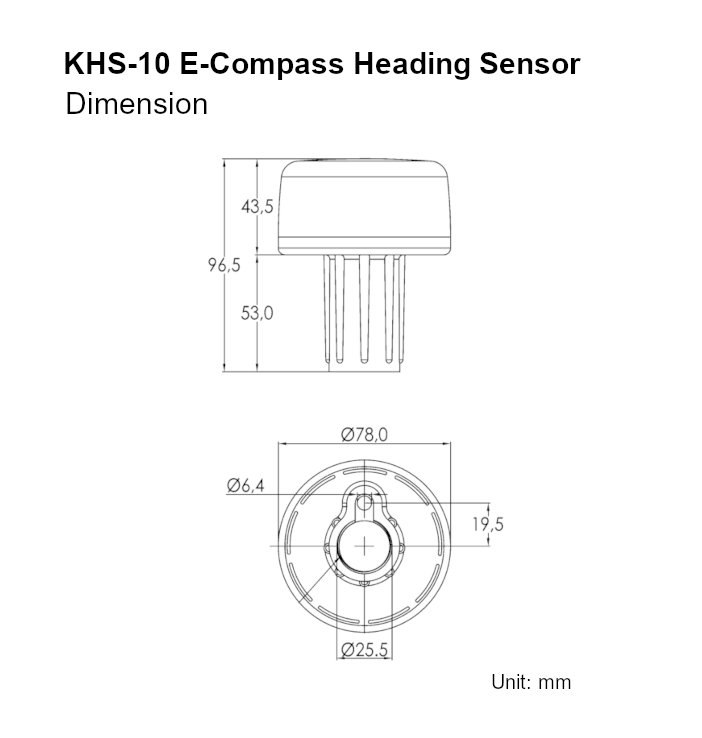

  • Dimensions: 81.7 mm(D) X 91 mm(H)
  • Weight:  439.5g (w/o cable & connector)
  • RF Cable: 10m RG-59
  • Connector:  BNC connector supplied as
    standard
  • Antenna center frequency: 1575.42 MHz ± 1.023 MHz
  • Absolute Strengthening at Zenith: +5 dB
  • Power Boost:  27 dB
  • Heading accuracy: less than 3°
  • Positioning accuracy: 2.5m (95%) without S/A
  • Update rate: 1Hz
  • Absolute Strengthening at Zenith: +5 dB
  • Baudrate: 4800/9600/19200/38400 Selectable
  • Output Sentences: GPRMC, GPGSA, GPGLL, GPZDA, GPVTG, GPHDT(5Hz)
    NOTE: all output sentences are in intervals of 1 Hz unless specified
  • Supply voltage: 5V-32V, Over-voltage and reverse polarity protected
    Power consumption: 450mW
  • Operating Temperature:  -40°C ~ +85°C
  • Storage Temperature:  -40°C ~ +90°C
  • Relative Humidity:  95% non-condensing
  • Waterproof:  IPX7

In the Box

  • KHS-10 GPS/Beidou Electronic Compass Heading Sensor with 10m cable
  • Pole mount
  • Flat base x 1
  • Long screws  (TA5-20) x 4
  • Short screws  (ST4-6) x 2
  • Screw buckles x 2
  • Wire thread buckle x 1
  • Sealing plug x 1
  • Installation manual

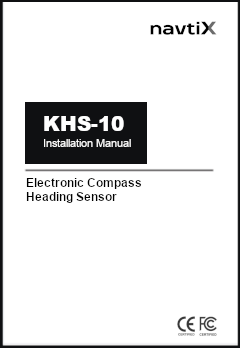

KHS-10 Heading Sensor Installation Manual Download
