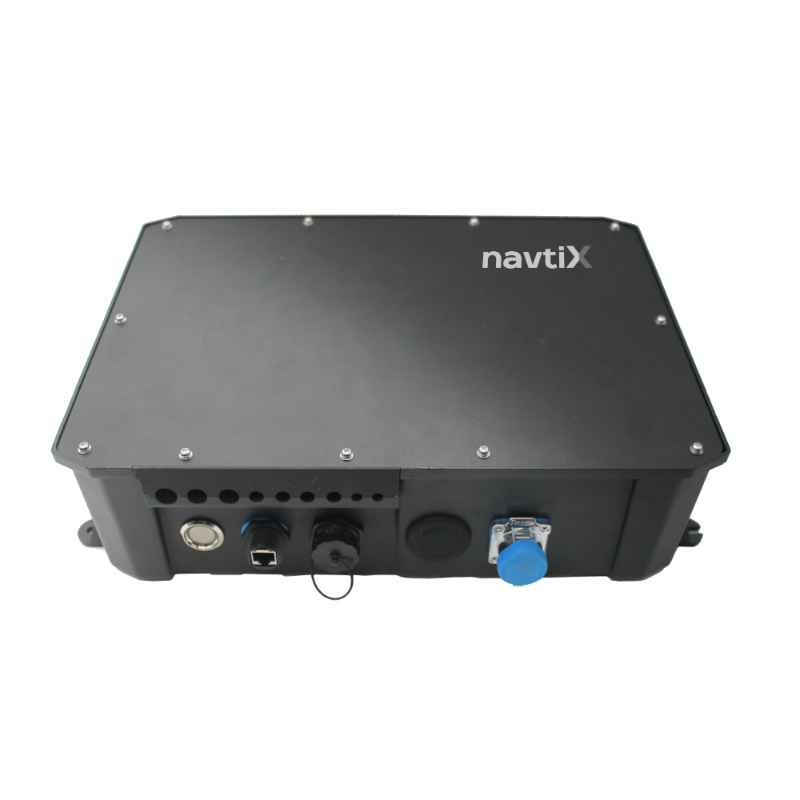

IMO Black Box Marine Radar

Model: KSR-1938BB

Part Number:

navtiX’s IMO Black-Box Marine Radar systems are designed for superior performance, long-life and low cost of shipowner. Each KSR series commercial radar system incorporates Shanwei Express’ proven magnetron digital radar technology.

Complies with SOLAS carriage requirements for vessels under 10000GT and fully meets MSC 192(79) radar performance standards. Ideal for IMO/SOLAS CAT2 & CAT3 vessels up to 10,000 tons, including OSV, workboats, deep sea shipping, ocean fishing vessels & superyacht.

Main Features:

  • Designed to comply with new IMO & IEC regulations with 263mm effective diameter

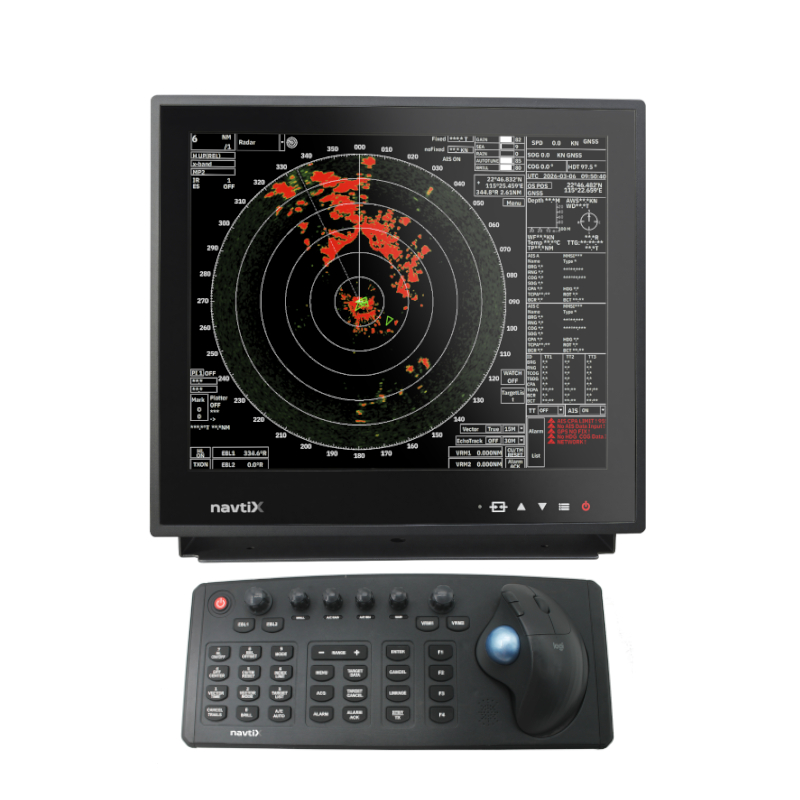

  • 19″ high resolution portrait color LCE monitor
  • 12kW 6ft open array scanner with up to 48 RPM

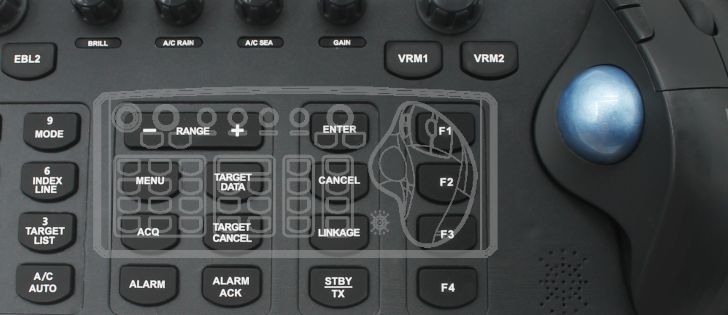

  • Quick & easy access knobs & trackball for intuitive operation
  • Optimized sea clutter algorithm making it easier to distinguish small targets from waves
  • Built-in TT (ARPA) tracks up to 40 targets with data transmit
  • Overlay AIS on radar image
  • Easy operation by remote trackball unit
  • Support HDMI & VGA video output

Great target detection, made small targets possible distinguish from waves with the improved sea clutter algorithm

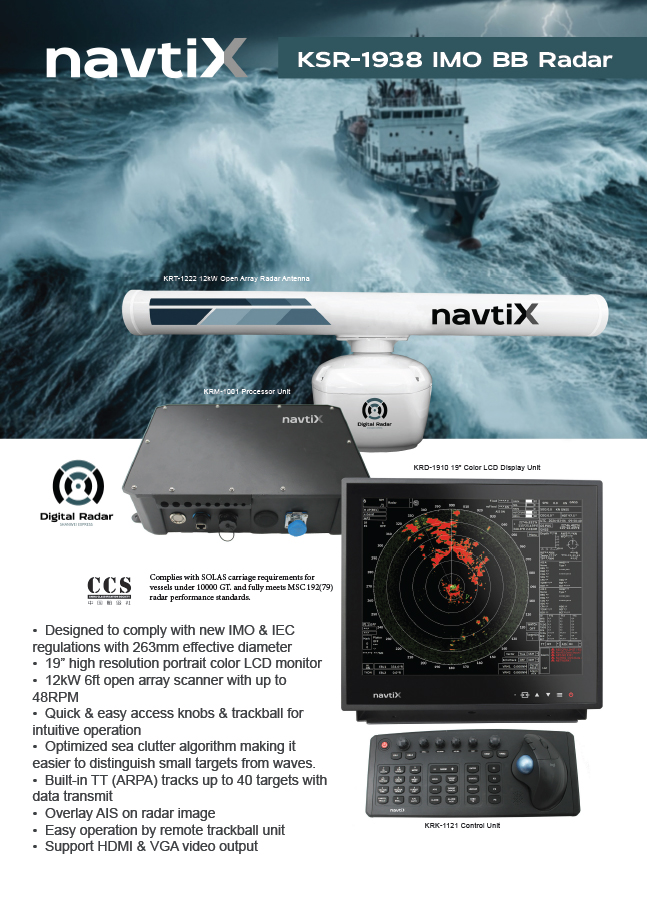

KSR-1938BB Brochure

Download

Specifications

Radar Scanner:
  • Antenna Type:  Slotted waveguide array
  • Radiator Length:   4ft or 6ft
  • Polarization:   Horizontal
  • Rotation:   24 RPM or 48 RPM
  • Beamwidth:   Horizontal 1.2°, Vertical 22°
  • Wind Load:   100kn relative
  • TX Frequency & Modulation:  X-band  9410MHz+/-30MHz  P0N
  • Output Power:   12kW
  • Pulse Width & Application Ranges:   0.08μ s/2100Hz (0.125, 0.25, 0.5, 0.75, 1, 1.5*nm); 0.3μ s/1200Hz (1.5*, 2, 3nm); 0.8μ s/600Hz (3*, 4, 6, 8, 12, 16, 24, 36, 48, 64, 72nm)

*Pulse width & repetition frequency of 1.5nm to 3nm can be select in the menu

  • Modulation:  FET switch
  • IF:   60MHz
  • Noise Figure:   10dB

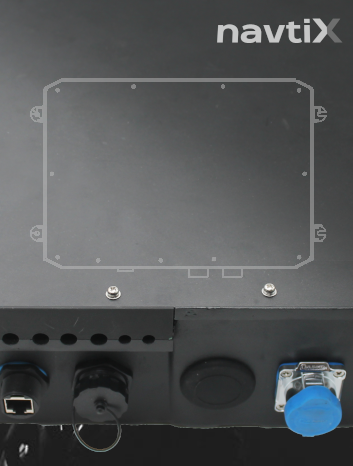

Processor Unit:
  • Min Range:  22m
  • Max Range:   96nm
  • Azimuth Resolution:   1.2°
  • Distance Resolution:   Less than 30m or 1% of the range
  • Azimuth Accuracy:   +/-1°
  • Presentation Mode:   Head-Up, North-Up, Course-Up, Ture motion
  • Target Tracking (T/T):  40 targets auto & manual acquisition
  • AIS:   200 targets
  • Echo Trail True/Relative:   Trail length 0/15/30sec, 1 to 30mins or continue
  • Interfaces:

IEC61162-1/NMEA0183        3 ports (Input)

USB                              6 ports (Input/Output)

RS232C                       3 ports (Input/Output)

RS422                          2 ports (Input/Output)

LAN                              1 port

HDMI                            1 port

VGA                              1 port

  • Data Sentences (NMEA0183) Input:   ABK, ACK, ALR, BWC, BWR, DBK, DBS, DBT, DPT, DTM, GGA, GLL, DHT, MTW, MWV, RMB, RMC, RTE, THS, VBW, VDM, VDO, VDR, VHW, VTG, VWR, VWT, WPL, ZDA
  • Data Sentences (NMEA0183) Output:   ABM, ACK, ALR, BBM, OSD, RSD, TLB,TLL, TTD, TTM, VSD
Display Unit:

Display Unit:

  • Screen Size:   19″ color LCD
  • Display Resolution:   1280 x 1024 pixels
  • Radar Effective Diameter:   263mm

General:

  • Power Supply:   24VDC@180W (Saving mode 40W)
  • Environment Temperature:   Scanner & Antenna  -25°C to +70°C; Processor unit & Display unit  -15°C to +55°C
  • Waterproofing:   Scanner & Antenna  IPX6; Processor unit & Display unit  IP22

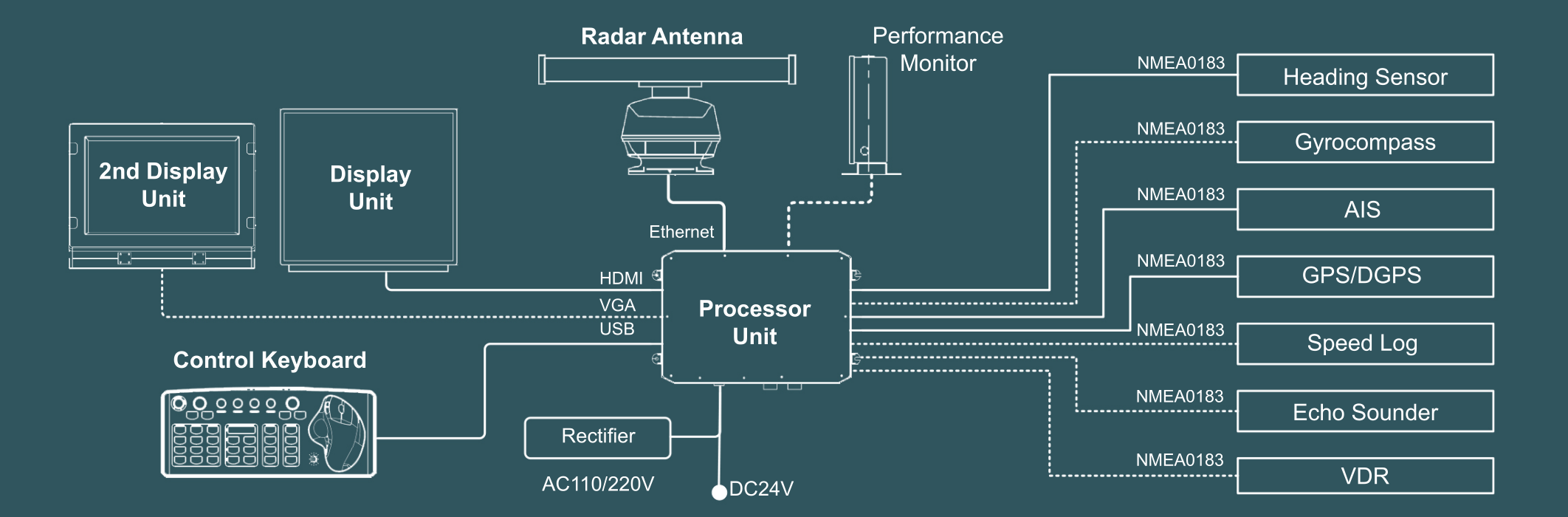

System Interconnection Diagram

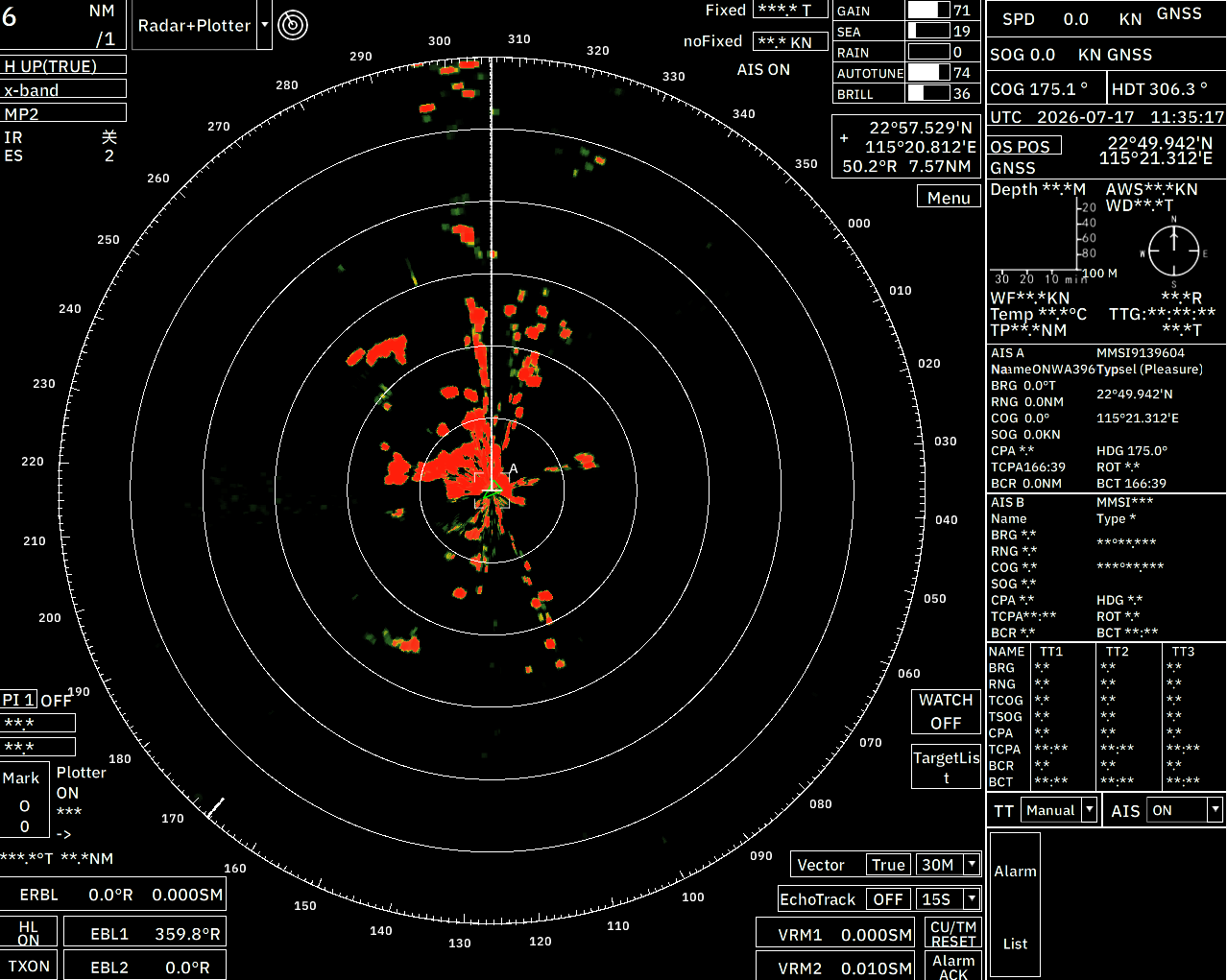

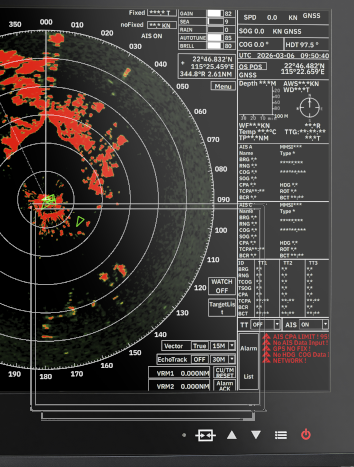

Main Screens

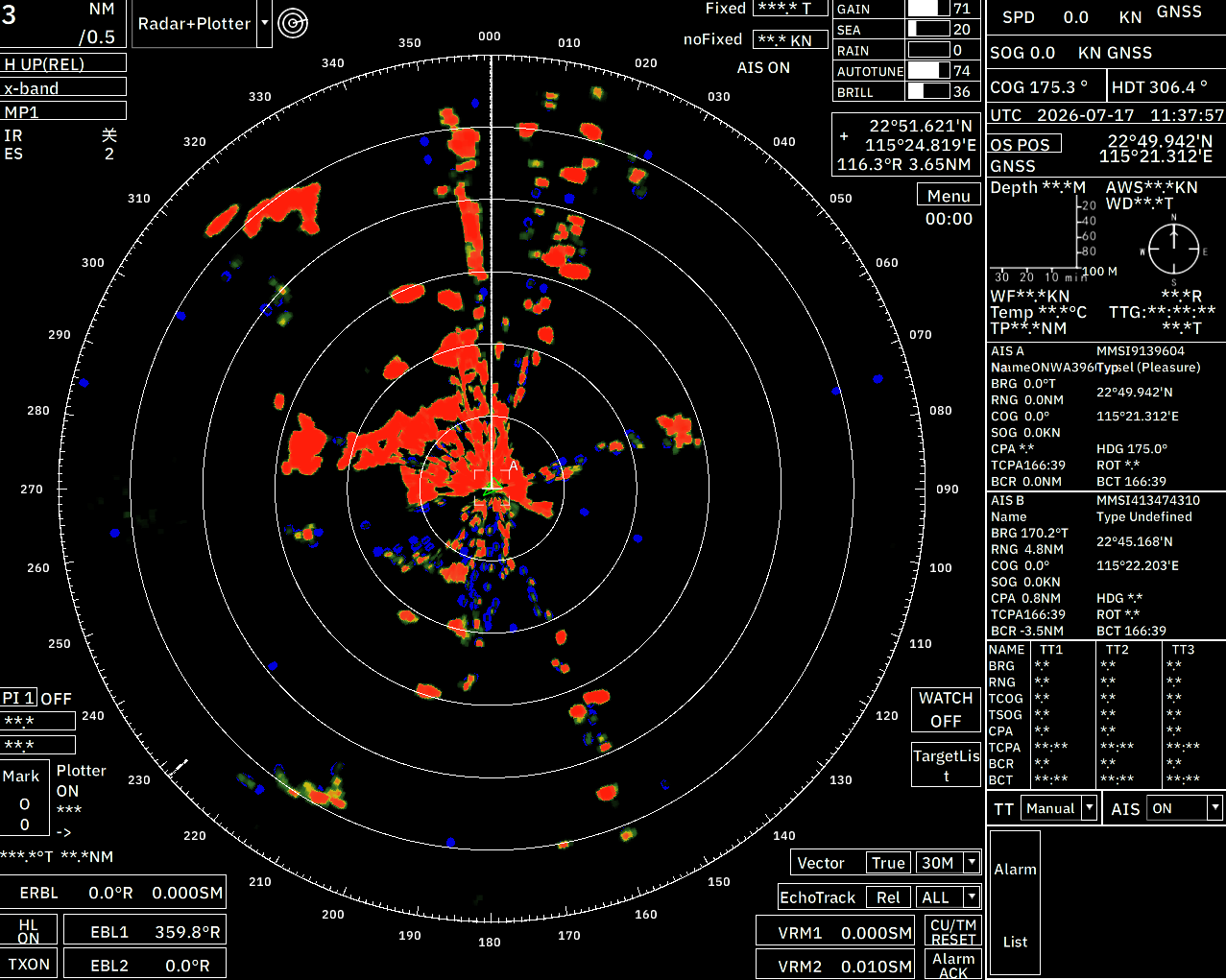

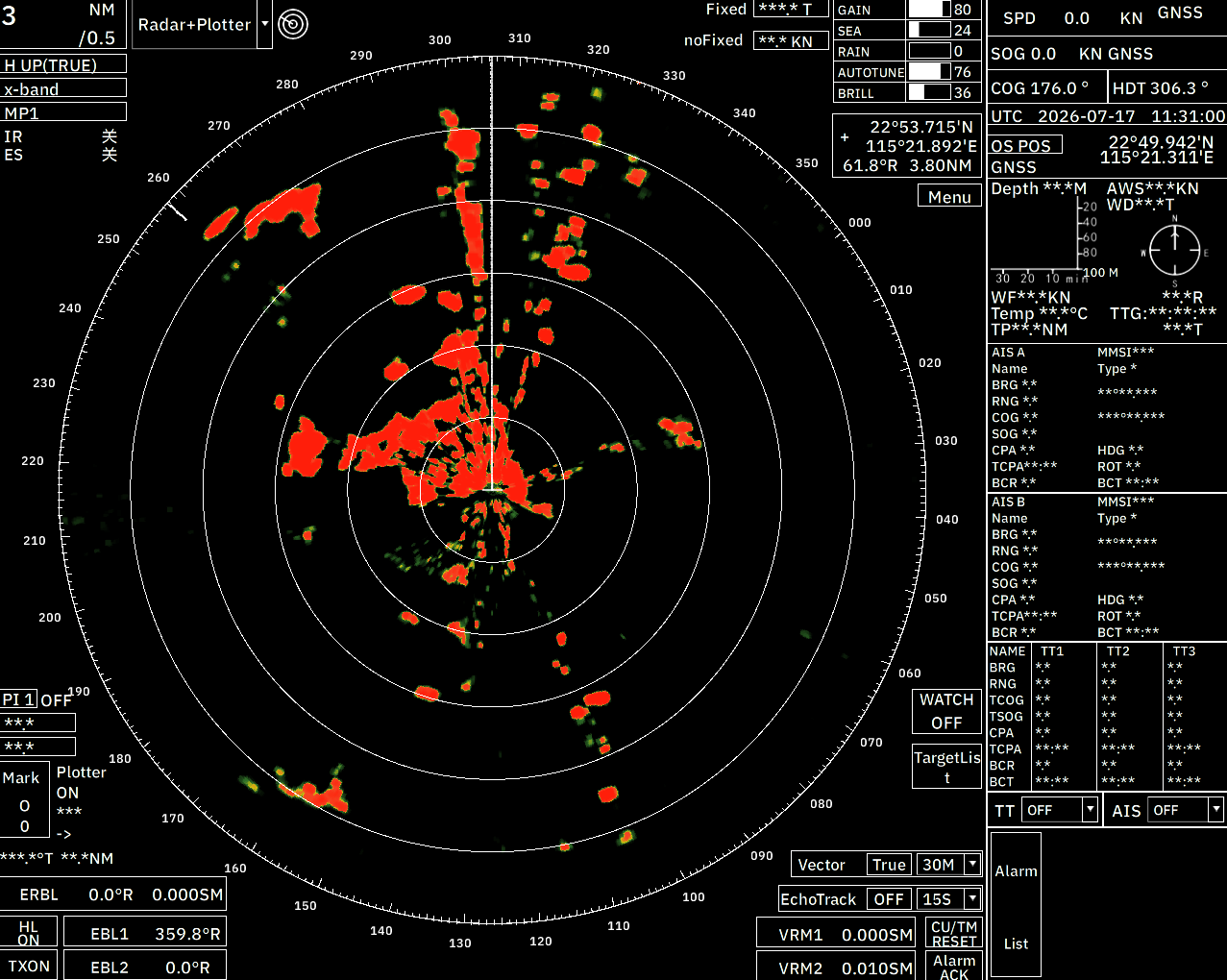

Trails True Motion

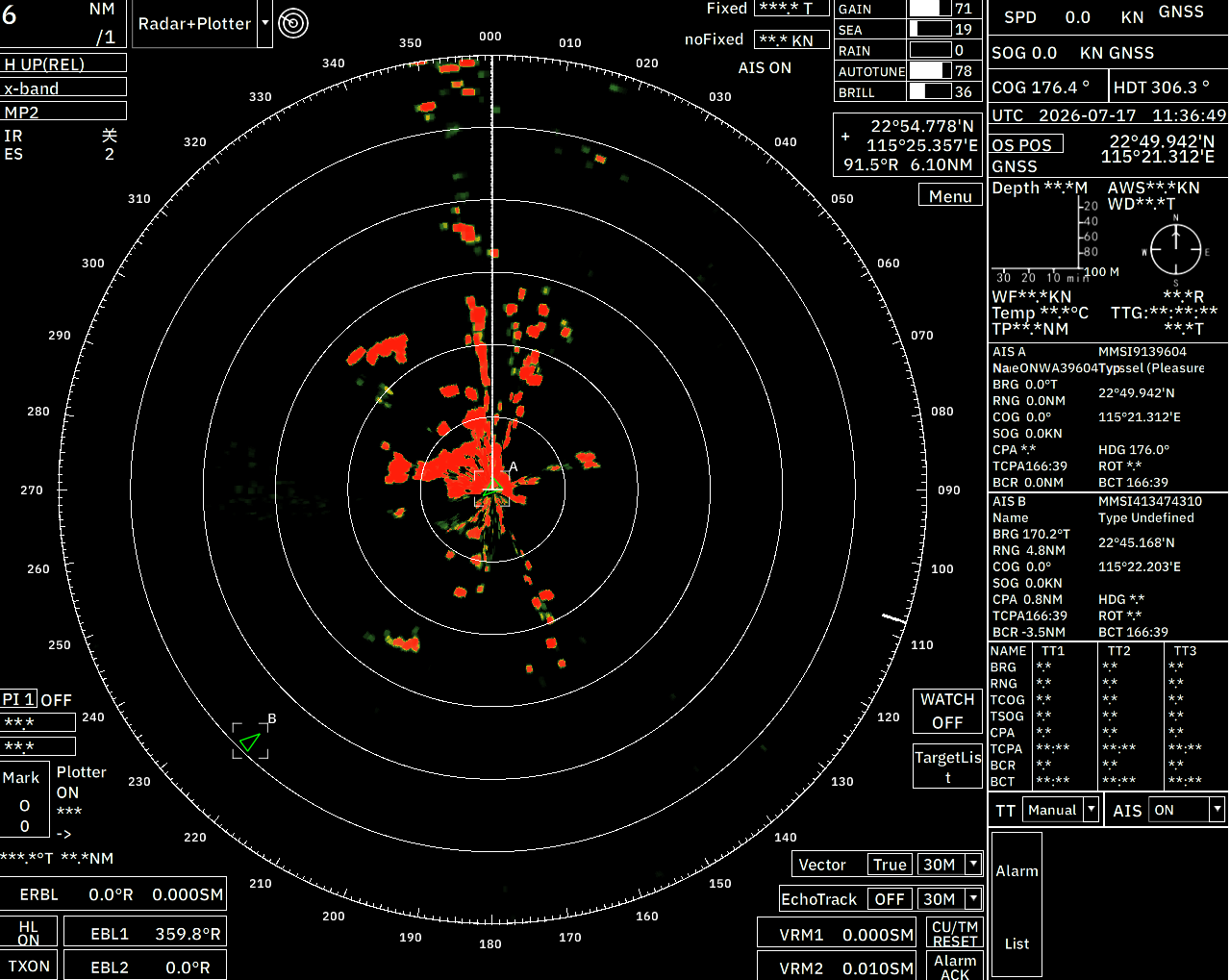

T/T Target Tracking w/ AIS

Parallel Lines

Advanced Sea/Rain Clutter
